Avr As440 Regulador De Voltaje Automático Generador 24403 Bl

Descripción

Product description:

Model No.: AS440

SENSING INP984311532UT

Voltage Jumper selectable

100-130 Vac 1 phase or

190-264 Vac 1 phase

Frequency 50-60 Hz nominal

POWER INPUT

Voltage 100-264 V ac 1 phase

Frequency 50-60 Hz nominal

OUTPUT

Voltage 82 V d. C. a 200 V a. C.

Current continuous 4A (see note 1).

Transient 7.5A for 10 secs.

Resistance 15 ohms min

(10 ohms min when input volts is less than 175 ac)

REGULATION

+/- 1.0% (see note 2)

THERMAL DRIFT

0.03% per deg. C change in AVR ambient (see note 3)

TYPICAL SYSTEM RESPONSE

AVR response: 20 ms

Filed current to 90%: 80 ms

Machine Volts to 97%: 300 ms

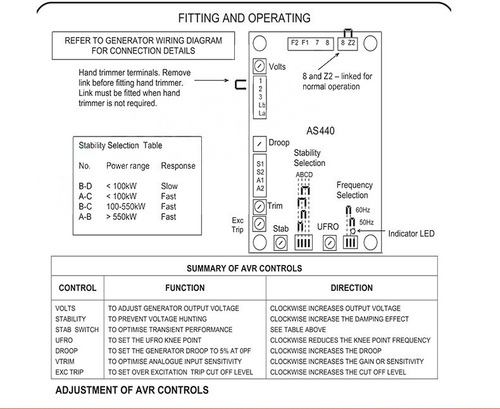

EXTERNAL VOLTAGE ADJUSTMENT

+/-10% with 1 k ohm 1 watt trimmer (see note 4)

Increasing resistance lowers voltage.

UNDER FREQUENCY PROTECTION

Set point: 94 -98% Hz (see note 5)

UNIT POWER DISSIPATION

12 watts maximum

BUILD UP VOLTAGE

4 Volts @ AVR terminals

ANALOGUE INPUT

Maximum input: +/- 5 Vdc (see note 6)

Sensitivity: 1V for 5% Generator Volts (adjustable)

Input resistance 1k ohm

QUADRATURE DROOP INPUT

10 ohms burden

Max. Sensitivity: 0.07 A for 5% droop 0PF

Max. Input: 0.33 A

OVER EXCITATION PROTECTION

Set point 75 V dc

Time delay 10-15 seconds (fixed)

ENVIRONMENTAL

Vibration: 20-100 Hz 50mm/sec

100Hz -2kHz 3.3g

Operating temperature: -40 to +70º C (note 7)

Relative Humidity: 0-70º C 95% (note 8)

Storage temperature: -55 to +80º C



Package included:

1 x Automatic Voltage Regulator AS440 E000-24403
