Motoreductor Motor Reductor Alto Torque 12v 6rpm Bringsmart

Descripción

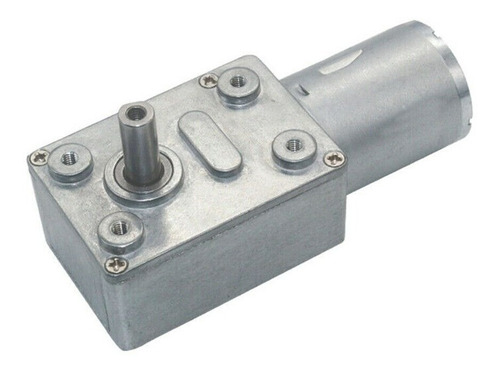

DC 12V Mini-Electric Turbo Worm Full Metal Gearbox Gear Motor High-Torque

Features:

Model: JGY370

Operating voltage: 12V DC

No load speed: 6 RPM

Power: 3W

Speed regulation: adjustable

CW/CCW: Support

Motor Size: 77mm(L) * 32mm(D)* 21.5mm(W)



Specifications:

Note: Different parameters' motors have their different looks. The lower speed and higher voltage are, the larger the torque is. Please read the parameters table before buying. Thanks!!!

Voltage: DC12V

No-Load Speed: 6rpm


Error: ±10%

Output Shaft Diameter: 6mm D-type

Output Shaft Length: 14mm(dual shaft)

Motor Diameter: 24.4mm

Motor Body Length: 30.8mm

Gearbox Size:46*32*25mm

for gearbox size detal, please see the picture



Package Contents:

1PCS Motor
