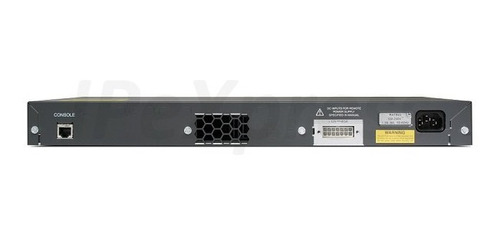

Cisco Ws-c2960-24tt-l, Catalyst 2960 24 10/100 + 2 1000bt La (Usado)

Descripción

WS-C2960-24TT-L es uno de los switches de la serie Cisco Catalyst 2960. Los switches Cisco Catalyst de la serie 2960 admiten voz, video, datos y acceso altamente seguro. También ofrecen una gestión escalable a medida que cambian las necesidades de su negocio. Las características comunes están incluidas: seguridad mejorada, incluido Cisco TrustSec para proporcionar autenticación, control de acceso y administración de políticas de seguridad, múltiples opciones de rendimiento Fast o Gigabit Ethernet, Cisco EnergyWise para administración de energía, administración de red escalable.


Technical Specifications
General
Device Type
Switch - 24 ports - managed
Enclosure Type
Rack-mountable 1U
Subtype
Fast Ethernet
Ports
24 x 10/100 + 2 x 10/100/1000
Performance
Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 6.5 Mpps
MAC Address Table Size
8K entries
Remote Management Protocol
SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, http, https, TFTP, SSH
Encryption Algorithm
SSL
Authentication Method
Secure Shell (SSH), RADIUS, TACACS+
Features
Layer 2 switching, auto-sensing per device, dynamic IP address assignment, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN)
Compliant Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP)
RAM
64 MB
Flash Memory
32 MB flash
Status Indicators
Port transmission speed, port duplex mode, power, link OK, system, link/activity
Expansion / Connectivity
Interfaces
24 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45
Power
Power Device
Internal power supply
Voltage Required
AC 120/230 V (50/60 Hz)
Power Consumption Operational
28 Watt
Miscellaneous
Rack Mounting Kit
Optional
MTBF
407,707 hours
Compliant Standards
TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A
Software / System Requirements
Software Included
Cisco LAN Base software
Dimensions & Weight
Width
17.5 in
Depth
9.3 in
Height
1.7 in
Weight
8 lbs
